4K PTZ Professional Conference Camera



  • 4K Ultra HD

With a new generation of SONY 1/1.8-inch, maximum 8.42million pixels high-quality UHD CMOS sensor, 4K (3840x2160) ultra-high resolution images are available. And backward compatible with 1080P, 720P and other resolutions.

  • 60° Wide-angle Lens

Exclusively customized ultra-high resolution 4K super wide-angle lens, 20x optical zoom, horizontal field of view up to 60°.

  • HDMI 2.0

Support HDMI 2.0 specification, can directly output 4K uncompressed digital video.

  • Low Power Sleep Function

It supports low-power sleep/wake-up and consumes less than 400mW in sleep mode.

  • Built-in Gravity Sensor

It supports image auto flip function for easy installation and use.

  • Low Light

The application of 2D and 3D noise reduction algorithm greatly reduces image noise. Even under the condition of ultra-low illumination, it still keep the picture clean and clear, and the SNR of image is as high as 55dB.

  • Multiple Interfaces

It supportsHDMI2.0 HD output, and also equipped with 3G-SDI interface, the effective transmission distance up to 150 meters (1080P30). HDMI, 3G-SDI, USB3.0, LAN can simultaneously output 4 channels of high-definition digital signals.

  • Remote Control

Through the RS232 and RS485 serial ports, the camera can be controlled remotely.

  • Intelligent Exposure

Effectively solve the impact of projection, TV and other equipment on the people who are photographing.

Camera Specifications:


Signal System

HDMI: 4K/60, 4K/50,4K/30, 4K/25, 4K/59.94,4K/29.97,1080P/60,1080P/50, 1080P/59.94,1080P/30, 1080P/29.97,1080I/60, 1080I/50,1080I/59.94, 720P/60,720P/59.94
3G-SDI: 1080P/60,1080P/50, 1080P/30,1080P/29.97,1080P/59.94, 1080P/25,1080I/60, 1080I/50,1080I/59.94, 720P/60,720P/59.94

Frame Rate

50Hz: 1fps~50fps
60Hz: 1fps~60fps


1/1.8 inch, CMOS,
Max Effective Pixel: 8.42M


20x, f = 6.25mm ~ 125mm, F1.58 ~ F3.95

Digital Zoom


Minimum Illumination

0.5 Lux @ (F1.8, AGC ON)


1/30s ~ 1/10000s

Horizontal Rotation Range


Vertical Rotation Range

-30° ~ +90°

Pan Speed Range

1.7° ~ 100°/s

Tilt Speed Range

1.7° ~ 69.9°/s

H & V Flip


Number of Preset


Preset Accuracy

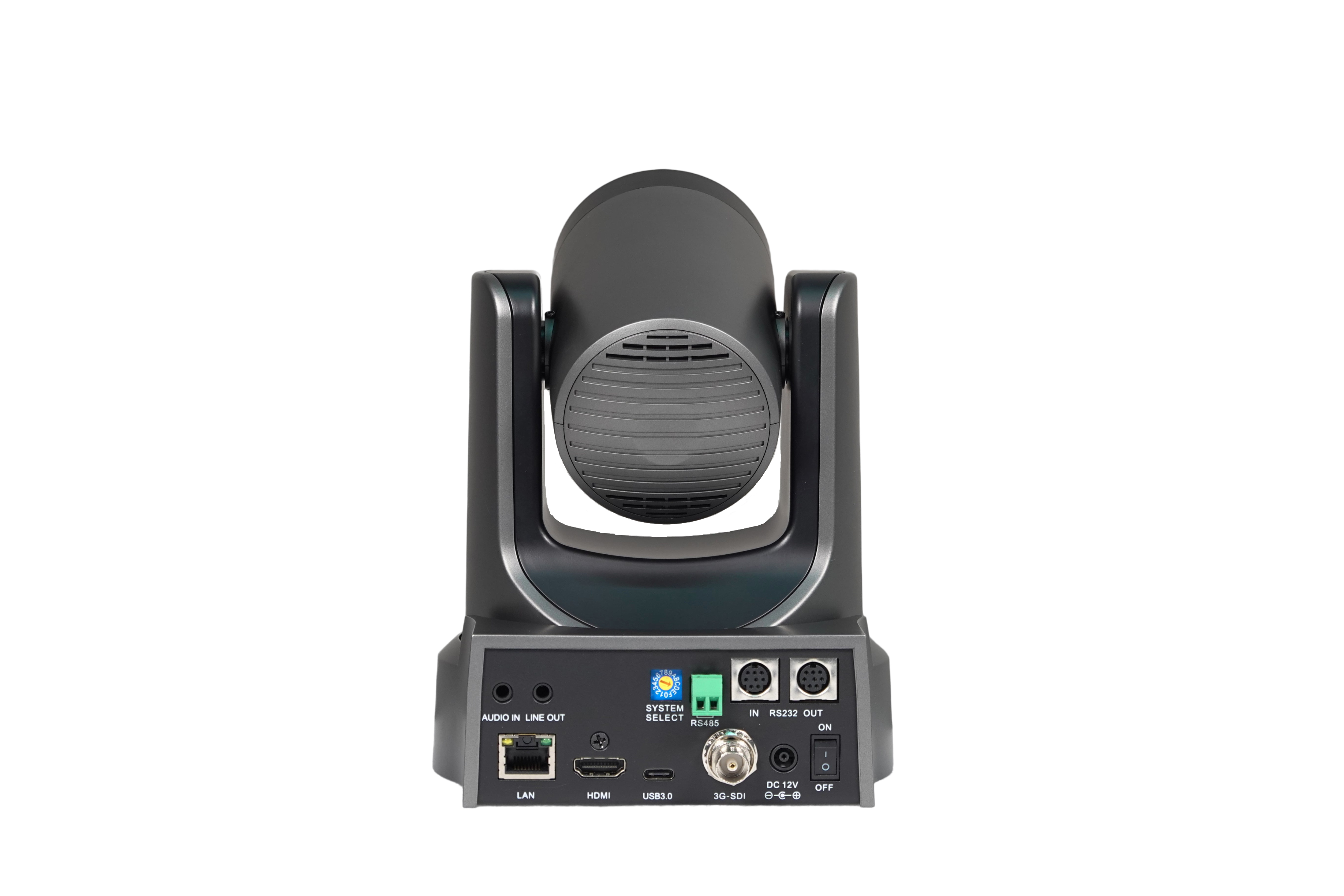

Input/Output Interface:

AUDIO IN Interface

1 x AUDIO IN:3.5mm Audio Interface

LINE OUT Interface

1 x LINE OUT:3.5mm Line Out Interface

Communication Interface

RS485, RS232

Network Interface


High Definition Interface


USB Interface

USB 3.0

Power Jack

JEITA type (DC IN 12V)

Physical Parameter:


168.4 x 141.5 x 164.5mm

Net Weight


Operating Temperature

-10°C ~ 40°C
